7 Inch Briteness 600cd/m2 1024x600 HDMI 1.1 PCAP resistive touch screen

Product Categories

Shenzhen rCloud Technology Co.,Ltd

Contact Now

Name: 7 Inch Briteness 600cdm2 1024x600 HDMI 11 PCAP resistive touch screen
Brand: rCloud
Price: 1 USD

Brand Name : rCloud

Model Number : RCS-TM070

Certification : CE.FC,Rohs

Place of Origin : china

MOQ : 1PCS

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal, L/C

Supply Ability : 1000pcs per month

Delivery Time : 5-8 work days

Packaging Details : Cartoon

Screen Size : 7"

Resolution : 1024(H)* 3(RGB)* 600(V)

Screen diagona : 7/17.78

Keyword : Touch Screen Monitor

IP rated front panel : IP65

Surface Hardness : 7H

Operating temperature : -10~ +65

Contact Now

7 inch 1024*600 LCD display PACP touch panel with interface USB

Features:

• Patented IP65 Front with silicon seal
• Strengthened cover glass
• Anti-glare treatment (chemical etching)
• 10-finger-multi touch capacitive touch
• LED backlight backed Panels in A+ quality
• Screwable connection for rugged environments

Specification:

Product name		7’’ PCAP Touch Monitor
Modle numer		RCS-TM070
Anti-glare LCD Panel
IP rated front panel		IP65
Screen diagonal (Inch/cm):		7/17.78
Display active screen size:		15.36x9.00
Aspect ratio:		16:9
Physical resolution:		1024x600

Colours displayed:		16.7M
Brightness (cd/m2):		600
Contrast:		800:1
Typical reaction time Tr/ Tf :		10/15 (ms)
Visual Angle horizontal/vertical :		150/145
Backlight / Backlight Lifetime (hours):		LED / 30,000

Touch Panel
Touch Technology	Projected Capacitive 10-point Multitouch
Touch Connector	USB
Touch Panel Drivers	Windows; Linux; Mac; Android
Touch Life (Contacts)	Unlimited
Surface Hardness	7H

Operation / Mechanical
Operating Temperature	-10 ~ +65 (°C)
Humidity Range (RH)	10%-90%
Net weight (kg)	0.6
Gross weight (kg)	2 (incl. cartonage)
Housing material	Metal and plastic
Housing (cm) LxWxH	18.25x12.95x3.28
Mounting	VESA 75

Power
Power Indicator	Green LED
Power Supply	100-240V ACDC active switch- ing; 12V DC-Out
Working Power (V)	12
Power Consumption (W)	5
Stand-By Consumption (W)	<1

Detailed Images

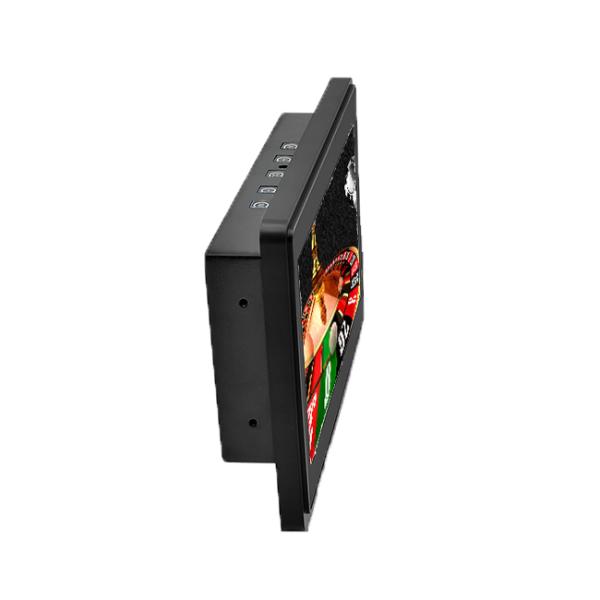

7 Inch Briteness 600cd/m2 1024x600 HDMI 1.1 PCAP resistive touch screen

Mini size easy to carry in your bags

High brightnesss 600cd/m can work both outdoor and indoor

UHD display 1024 x 600

CE FCC Rohs PSE CCC
